Ανάμιξη κονιαμάτων

Αναμείκτες (μίξερ) παρτίδας, μονού άξονα

Τα μίξερ (mixer) WBH αποτελούν την ιδανική λύση για την παραγωγή μειγμάτων υψηλότατης και σταθερής ποιότητας από παρτίδα σε παρτίδα (batch).

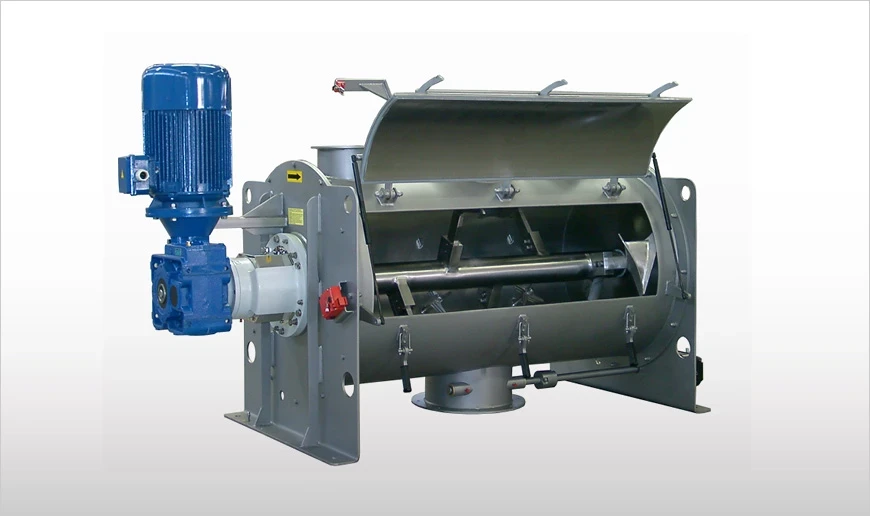

WBH

Η λειτουργία του μίξερ WBH βασίζεται στη μηχανική ρευστοποίηση του μείγματος. Τα εργαλεία (ηνία) ανάδευσης, χάρη στο συγκεκριμένο σχήμα, την θέση τους και την ταχύτητα περιστροφής τους δημιουργούν φυγοκέντρηση και στροβιλισμό του υλικού μέσα στον θάλαμο. Τα κλάσματα του μείγματος διαγράφουν έτσι τρισδιάστατη τροχιά σε σύντομο χρονικό διάστημα. Η έντονη αυτή κίνηση του μείγματος αποφεύγει νεκρά σημεία ή ζώνες χαμηλής ταχύτητας, εξασφαλίζοντας έτσι την συμμετοχή όλων των σωματιδίων στη διαδικασία ανάμιξης, ακόμη και αν τα κλάσματα φέρουν διαφορετική κοκκομετρία ή ειδικό βάρος. Για δευτερογενή ανάμιξη είναι επίσης εφικτή η παραμετροποίηση του μίξερ με αναδευτήρες (chopper) υψηλής ταχύτητας.

Τα τελευταία 30+ χρόνια ο όμιλος WAMGROUP έχει προμηθεύσει χιλιάδες μίξερ WBH παγκοσμίως για πολλές διαφορετικές εφαρμογές, όπως για την ανάμιξη ή και την συσσωμάτωση παρτίδων με ξηρά λεπτόκοκκα αλεσμένα στερεά, πούδρες, κονιάματα, κοκκώδη και ινώδη υλικά, αλλά ακόμη και για την ανάμιξη εφυγραμένων ή κολλωδών μειγμάτων με χαμηλό ιξώδες.

Κάθε μίξερ WBH αποτελείται από έναν κυλινδρικό θάλαμο (απο ανοξείδωτο χάλυβα 304L/316L με διάφορες επιλογές surface finishing, από Hardox®, ή από carbon steel) μέσα στον οποίο περιστρέφεται άξονας που φέρει εργαλεία ανάμιξης διάφορων τύπων (προαιρετικά και με προστατευτική επίστρωση για φθοροποιά υλικά) και σε συγκεκριμένη διάταξη, ανάλογα με την εφαρμογή. Πλάκες στήριξης σφραγίζουν μετωπικά τον θάλαμο, και φέρουν φλαντζωτά έδρανα στα οποία στηρίζεται στεγανά ο άξονας (σφράγιση με αέρα, άζωτο, ή γράσο). Το μίξερ μπορεί να εξοπλιστεί με μία ως τρεις κυλινδρικές εξόδους ή με ολικό άνοιγμα τύπου bomb-bay. Τα μίξερ WBH είναι διαθέσιμα σε μεγάλο εύρος μεγεθών πλαισίου, με δυναμικότητα 10 ως 20'000 λίτρων ανά παρτίδα (batch), αλλά και με μεγάλη ευελιξία στην επιλογή του υποσυστήματος κίνησης του άξονα.

Το αποτέλεσμα του έξυπνου μηχανολογικού σχεδιασμού και της μεγάλης εμπειρίας της WAM είναι μια σειρά μίξερ με υψηλή αξιοπιστία, χαμηλές ανάγκες συντήρησης, εύκολη πρόσβαση σε όλα τα εσωτερικά τμήματα για καθαρισμό, και εν τέλει ανάμιξη υψηλότατης και σταθερότατης ποιότητας από παρτίδα σε παρτίδα.

Επεξήγηση με video

Περισσότερα »


Αναμείκτες (μίξερ) παρτίδας, μονού άξονα, με εκκένωση "bomb-bay"

Ensure instant product discharge with residue of less than 0.1% (depending on the product mixed).

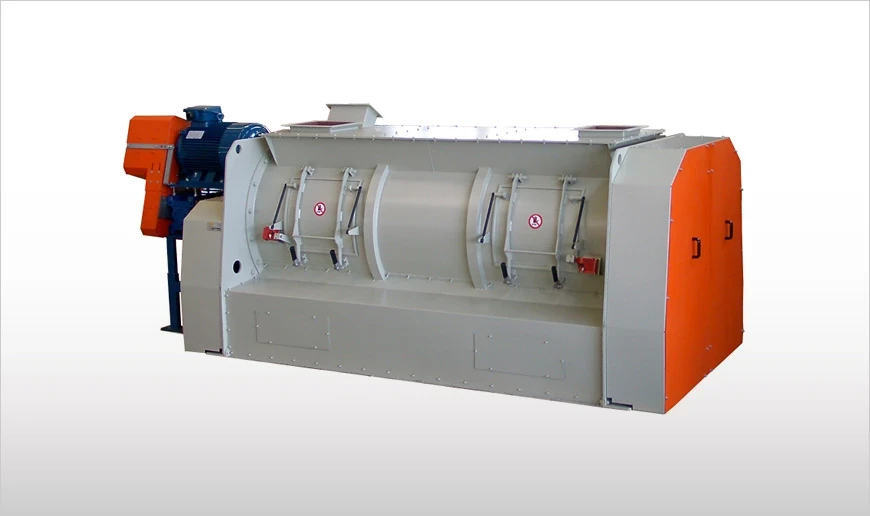

WBHP/WBHT

In addition to the features of standard WBH mixers, the WBHP and WBHT-type ensure instant product discharge with residue of less than 0.1% depending on the product mixed. A bomb-bay discharge is mandatory where discharge time has to be reduced to the minimum.

Bomb-Bay Discharge Batch Mixers of the WBHP type with 15° opening cross section and the WBHT type with a 60° opening satisfy any customer’s requirements in terms of high quality mixing in batch-type processes oriented towards optimised efficiency. An outlet opening over the entire length of the mixing drum ensures almost residue-free discharge of the product in the shortest possible time.

WBHP / WBHT Bomb-Bay Discharge Batch Mixers are the appropriate mixing machines for virtually all industries (building and construction, food, animal feed, chemicals, etc.) where the highest possible mixing quality and optimum productivity are required.

Περισσότερα »


Μικροτροφοδότες για ογκομετρική τροφοδοσία και δοσομέτρηση

Particularly suitable for feeding poorly flowing powders and granular materials that tend to clog.

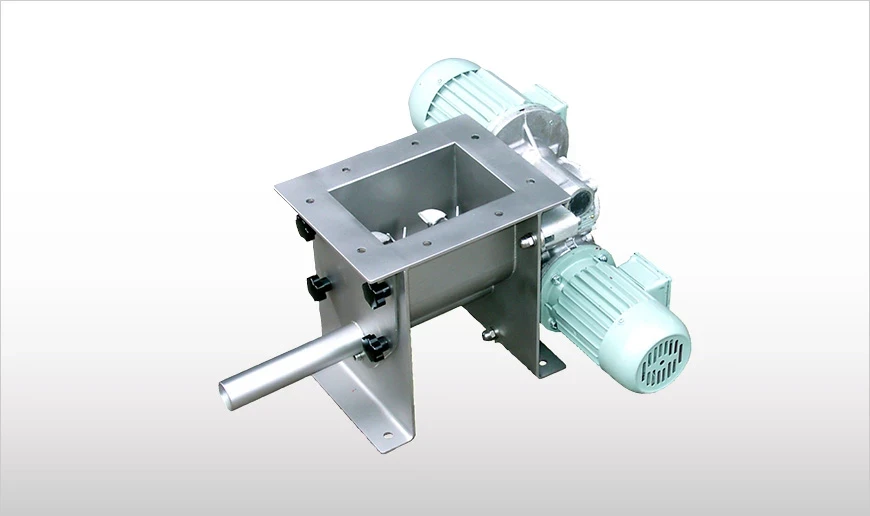

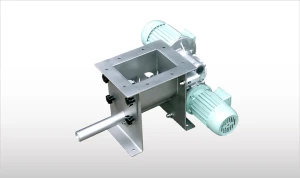

MBF

The MBF Micro-Batch Feeder for continuous volumetric feeding of powdery or granular materials consists of a steel-reinforced SINT engineering polymer body (optionally body entirely manufactured from stainless steel), a horizontally mounted rotating agitator tool, a feeder screw beneath the agitator tool, a feeder pipe enclosing the protruding feeder screw, one drive unit each for agitator and feeder screw.

Tests on product flow and material stress were carried out to establish optimum body geometry. Agitator and feeder tool geometry and materials were tested, too, before choosing an optimal steel and SINT engineering polymer composite.

On request, MBF series Micro-Batch Feeders are supplied in food-grade versions with both FDA and EN approval.

Περισσότερα »


Κυλινδρικοί αποκονιωτές

The result of WAM’s decades of experience in dust filtration technology

WAMFLO

The WAMFLO Dust Collector range is the result of WAM’s decades of experience in dust filtration technology. Since it went into production shortly after the turn of the millennium, tens of thousands of units have left the Group’s manufacturing plants all over the world. In diverse configurations WAMFLO has proved to be suitable for a variety of applications in virtually all industries.

WAMFLO Dust Collectors are equipped with a cylindrically shaped stainless steel body and flanged bottom ring which contains vertically mounted filter elements of various types including the high efficiency POLYPLEAT. An air jet filter element cleaning system is integrated in the hinged top cover. WAMFLO Dust Collectors are available with or without suction fan. As an option for applications with top-mounted suction fan or in case of limited headroom, WAMFLO can be equipped with a large front door which facilitates access to the filter elements in case of inspection or maintenance. In the food-grade version WAMFLO comes in a zero dust residue design. WAMFLO is supplied with an integrated modular electronic panel able to manage cleaning cycles according to the specific requirements of the work process. It is suitable for operation in explosive environments.

Περισσότερα »
