Φόρτωση και εκφόρτωση κονιαμάτων και χύδην στερεών

"Στις περισσότερες βιομηχανικές καταστάσεις, κωνιάματα και χύδην στερεά πρέπει να αποθηκεύονται και να απορρίπτονται από κάδους και σιλό. Αυτό μπορεί να έχει ως αποτέλεσμα συχνά απροσδόκητα προβλήματα, π.χ., εμπόδια ροής ή διαχωρισμό. Τα περισσότερα από αυτά τα προβλήματα μπορούν να αποφευχθούν με τον σωστό σχεδιασμό του εξοπλισμού σε σχέση με τις ιδιότητες ροής του χύδην υλικού που πρόκειται να αποθηκευτεί. Ιδιαίτερα σημαντική είναι η σχεδίαση της δεξαμενής, και όλου του συνδεδεμένου εξοπλισμού (π.χ. τροφοδότης) που έχει επίδραση της ροής μέσα στην δεξαμενή."

Schulze, Dietmar. (2016). Storage and Discharge of Bulk Solids. 10.1007/978-3-319-20949-4_13

Οι σταθμοί εκφόρτωσης FIBC επιταχύνουν και διευκολύνουν το άδειασμα big bag

Η γρήγορη και καθαρή (χωρίς νέφος σκόνης ή απώλειες) εκφόρτωση χύδην στερεών και κονιαμάτων από big bag είναι ένα ήδη λυμένο πρόβλημα χάρη στον σταθμό SBB-HFF της WAM.

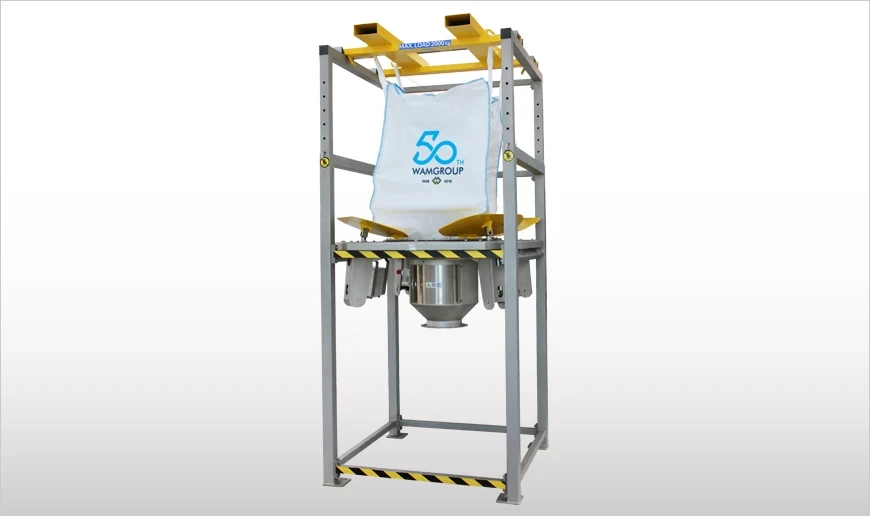

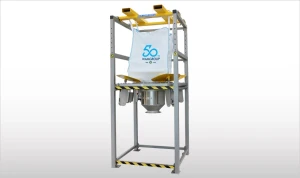

SBB-HFF

Οι μηχανισμοί δόνησης και ανάδευσης του SBB-HFF επισπεύδουν την διαδικασία εκκένωσης big bag μεγέθους ως και 1100 x 1100 x 2000 mm.

Η δεξαμενή χωρητικότητας 330 ℓ μπορεί να εξοπλιστεί με θύρα επιθεώρησης, δείκτη στάθμης, βαλβίδα τύπου θυρίδας (slide gate) ή lump breaker, και φλάντζα σύνδεσης, π.χ. προς κοχλία, μικροτροφοδότη, ή περιστροφικό αεροφράχτη.

Η διαθεσιμότητα τριών διαφορετικών παραλλαγών του SBB-HFF διευκολύνει την ενσωμάτωση του σταθμού σε γραμμές παραγωγής με διάφορες διατάξεις:

  • M - με σταθερό πλαίσιο και ράγα (monorail) για χρήση με ανυψωτικό σύστημα / γερανάκι
  • S - με τηλεσκοπικά ρυθμιζόμενο πλαίσιο και σταυρό ανάρτησης του big bag από κλαρκ / περονοφόρο ανυψωτικό όχημα
  • C - χωρίς πλαίσιο, με σταυρό ανάρτησης, για πλήρη ευελιξία

Ο SBB-HFF αποτελεί την μετεξέλιξη του προγενέστερου σταθμού SBB, ο οποίος προτιμήθηκε παγκοσμίως επί 20+ χρόνια από πελάτες του WAMGROUP.

Περισσότερα »


Τα εκσακκιστικά βοηθούν την αποκονίωση κατά το άδειασμα σάκκων

Compact, user-friendly, maintenance-friendly dust-controlled bag dumping.

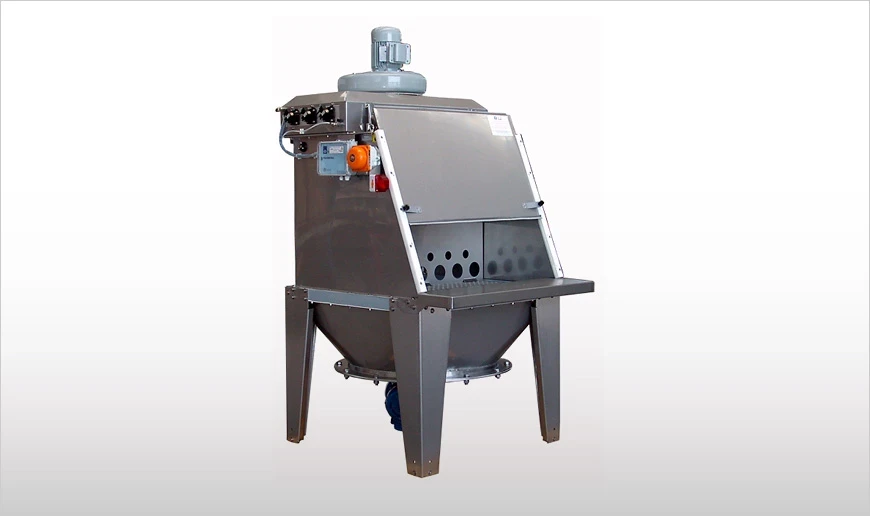

RSM

Produced in large series, the RSM Manual Bag Opener shows an industrial design as a result of in-depth assessment of user requirements in a number of industries.

The RSM Manual Bag Opener consists of a grille with a rest fitted on its front. The grille is mounted on top of a hopper which is supported by four feet. A fabricated hood with protection door fitted on its front covers the hopper and grille. RSM Bag Openers are manufactured from high-finish-grade materials and come with or without integrated de-dusting filter unit. In the version with integrated dust filter the filter elements are pneumatically cleaned by reverse air jet.

The operator puts the bag on the rest and pushes it on to the grille. He then slits the bag open with a vertical cut and shakes it empty. While the bag content may be discharged through a hopper or by BINSWEEP, a special rotary discharging device, into any type of feeder, the built-in fan operated, air jet cleaned dust collector filters the dust generated during emptying. The empty bag is dropped into the chute on the side which leads into the optional COM Waste Bag Compactor (see COM).

Manual RSM Bag Openers are designed to minimise material residue. They satisfy a large number of applications due to their modular component design.

Περισσότερα »


Οι ενεργοποιητές δεξαμενών υποβοηθούν την ροή χύδην στερεών από σιλό

The BA excels by its seamless cone and its double-flanged, seamless gasket.

BA

The BA Bin Activator is a device of tapered conical shape that, due to vibration, facilitates material flow from hoppers or silos. It consists of a seamless carbon or stainless steel cone manufactured on a sheet metal lathe, a seamless SINT engineering polymer seal with integrated upper and lower flange, suspensions for connection with the silo cone, as well as one or two electric OLI motovibrators.

To fit the BA Bin Activator, the silo cone has to be shorter than usual, leaving a wide outlet section. A flange supplied before or together with the Bin Activator is welded on the silo outlet cone on site. Special suspensions and a seamless, flanged SINT engineering polymer seal form a flexible connection between silo and Bin Activator. One or two electric OLI motovibrators fitted on the unit generate vibration of the Bin Activator every time the feeding device beneath the silo is started for feeding material. During operation the Bin Activator describes a gyratory movement which is transmitted to the material inside the silo. The result is smooth material flow through the Bin Activator outlet into the connected feeder.

BA Bin Activators are used in various industrial applications to facilitate discharge of powdery or granular materials from a silo or hopper. The use of this equipment ensures optimum feeding of the material according to a “mass flow” condition, thus avoiding bridging or rat holing phenomena.

Περισσότερα »


Οι δονούμενοι αεριστές (vibro-aerators) διευκολύνουν το άδειασμα κάδων ή δεξαμενών (hopper)

An important step ahead in aeration technology, with superior versatility across various powdery materials.

VB range

The unique, patented UNIDIRECTIONAL AIR FLOW Tramontana® technology is included in the 2014 VB-series. The VBS Quick Flow (“S” standing for application on SILOS) has been fully reviewed in order to satisfy current market needs.

Along with a variety of membrane materials, the new design has considerably improved the performance of OLI Vibro-Aerators. An important step ahead in aeration technology, the VB-series meets virtually every user’s requirements in terms of versatility in use for various powdery materials, protection of the environment and temperature range. Lower operating pressure and reduced air consumption are the main benefits.

An external mounting kit makes the VB-series interchangeable with aerator pads which are commonly used in mobile batching plants.

The Mini-VB series, for both internal and external assembly, completes this product line.

VBT Quick Flow (“T” standing for trailer application) completes the range as an innovative solution for Bulk Tanker Trailers.

The entire VBT line is food-grade and UL94-compliant. These Aerators are manufactured from high-tech polymer suitable for environmental conditions ranging from extremely hot to extremely cold.

Laboratories and field test have given proof of high efficiency in terms of reduction of tanker unloading time of around 20%, depending on the type of powder.

VBT Quick Flow is completely interchangeable with other aerator makes currently present on the market.

Περισσότερα »


Οι δονητές συνεχόμενης κρούσης αντιμετωπίζουν προβλήματα γεφύρωσης ή χτισίματος μέσα σε σιλό

Typically P-series vibrators are used wet or electrostatics powders such as clay, sludge or manure.

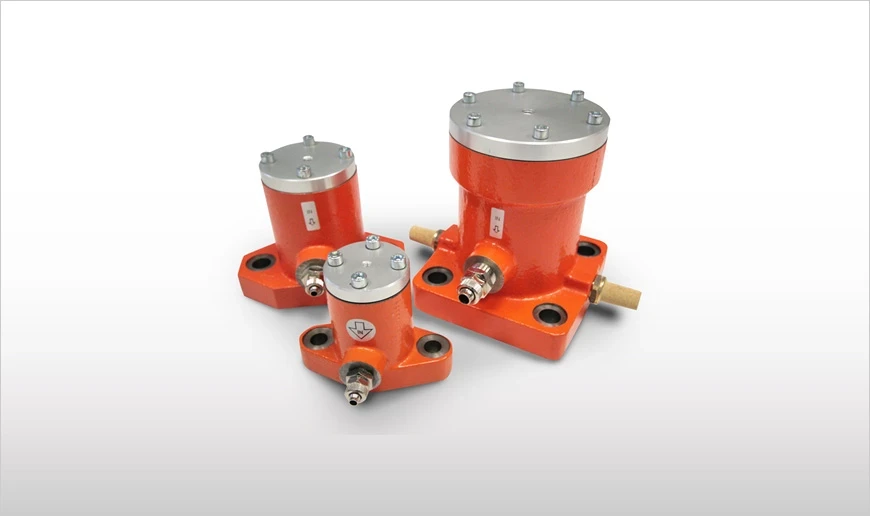

P

P-Series Continuous Impact Vibrators produce a shockwave generated by the continuous impact of their internal piston on the metallic base mount welded on the or wall.

They are particularly efficient with bulk materials that tend to stick to the wall.

P-Series Continuous Impact Vibrators help solving problems such as formation of incrustations, bridging or rat-holing, operating continuously applying intermittent blows on the or at a pressure ranging from 2 to 6 bar (29 ~ 87 psi).

When operating multiple impact vibrators, those at the bottom should be activated first, moving progressively upwards at regular intervals to the upper ones.

The robustness of the P-series design makes these vibrators suitable both outdoor indoor application, as well as high temperatures of up to 200 °C (390 °F).

The external body parts are manufactured from aluminium from powder-coated (RAL 2009) grey cast iron.

P-Series vibrators are assembled on a base mounting plate (not supplied) which has to be welded on the , or wall. It is recommended to fix a safety chain to the vibrator to avoid accidental dropping during installation or maintenance.

To satisfy all market needs three sizes are available.

Περισσότερα »


Τα συστήματα φόρτωσης FIBC διευκολύνουν την πλήρωση big bag

Πλήρωση σάκων "big bag" χωρίς εκνέφωση σκόνης, με συμπαγές αποτύπωμα στο χώρο και εύχρηστη λειτουργία.

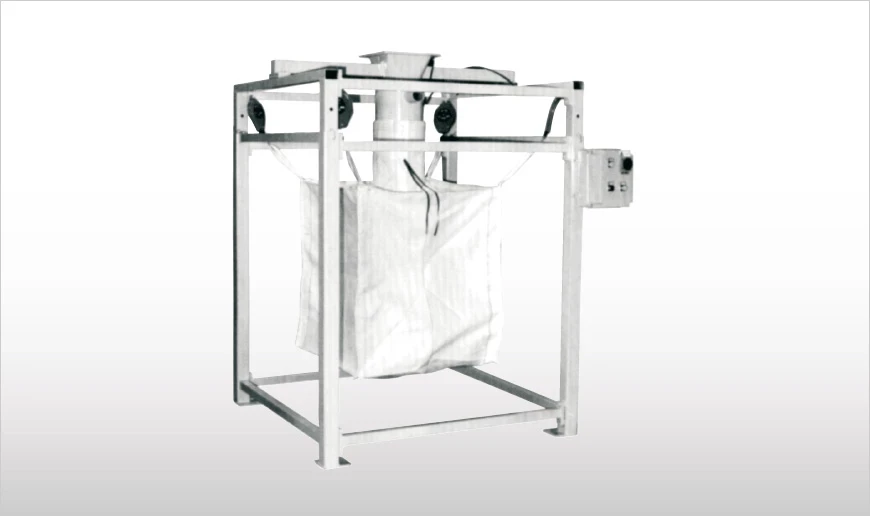

RBB

Οι σταθμοί πλήρωσης RBB επιτρέπουν την αποτελεσματική και χωρίς σκόνη πλήρωση σάκων "big bag" διάφορων διαστάσεων σε εγκαταστάσεις που διαχειρίζονται χύδην στερεά, κοκκώδη υλικά και κονιάματα, ακόμη και αν αυτά είναι σε συμπιεσμένη μορφή.

Αρχικά, το άδειο big bag συνδέεται με τα τέσσερα άνω σημεία (γάντζοι με ελατήρια, για εξισορρόπηση) του χαλύβδινου πλαισίου και η κυλινδρική είσοδος του σάκου συνδέεται με το στόμιο φόρτωσης του σταθμού. Το στόμιο διαθέτει δακτύλιο σφράγισης, ο οποίος φουσκώνει ώστε να διατηρηθεί ανοιχτή η είσοδος του σάκου κατά τη διάρκεια της πλήρωσης. Με την σφράγιση αυτή αποφεύγεται επίσης η εκτόνωση υλικού σε μορφή σκόνης στο περιβάλλον του σταθμού. Με το πέρας της πλήρωσης, ο δακτύλιος ξεφουσκώνει, ο σάκκος αποσφραγίζεται, και το big bag ανυψώνεται με περονοφόρο όχημα και αφαιρείται από το χαλύβδινο πλαίσιο για περαιτέρω μεταφορά.

Χάρη στο τηλεσκοπικό πλαίσιο, ο σταθμός RBB μπορεί να χρησιμοποιηθεί για την πλήρωση big bag διατομής 1x1 m και με ύψος από 1 ως 2 m. Με τον συμπαγή σχεδιασμό του απαιτείται έτσι αποτύπωμα μόνο 1,5x1,5 m για την εγκατάσταση.

Για την αυτοματοποίηση της διαδικασίας πλήρωσης διατίθεται επίσης ηλεκτροπνευματικός πίνακας ελέγχου, με τον οποίο ελέγχεται η σφράγιση/αποσφράγιση του στομίου και το προαιρετικό βεντιλατέρ ισχύος 0,18 kW για φούσκωμα του big bag πριν την πλήρωση. Η είσοδος του σταθμού μπορεί να εξοπλιστεί με βαλβίδα τύπου θυρίδας (slide gate) WAM VFS για την αναχαίτιση της ροής, π.χ. από δεξαμενή (hopper). Το χαλύβδινο πλαίσιο του σταθμού προαιρετικά αποτελείται από ανοξείδωτο χάλυβα AISI 304L ή ακόμη και από AISI 316L για χρήση σε οξειδωτικά περιβάλλοντα ή για την πλήρωση big bag με τρόφιμα υλικά.

Περισσότερα »
