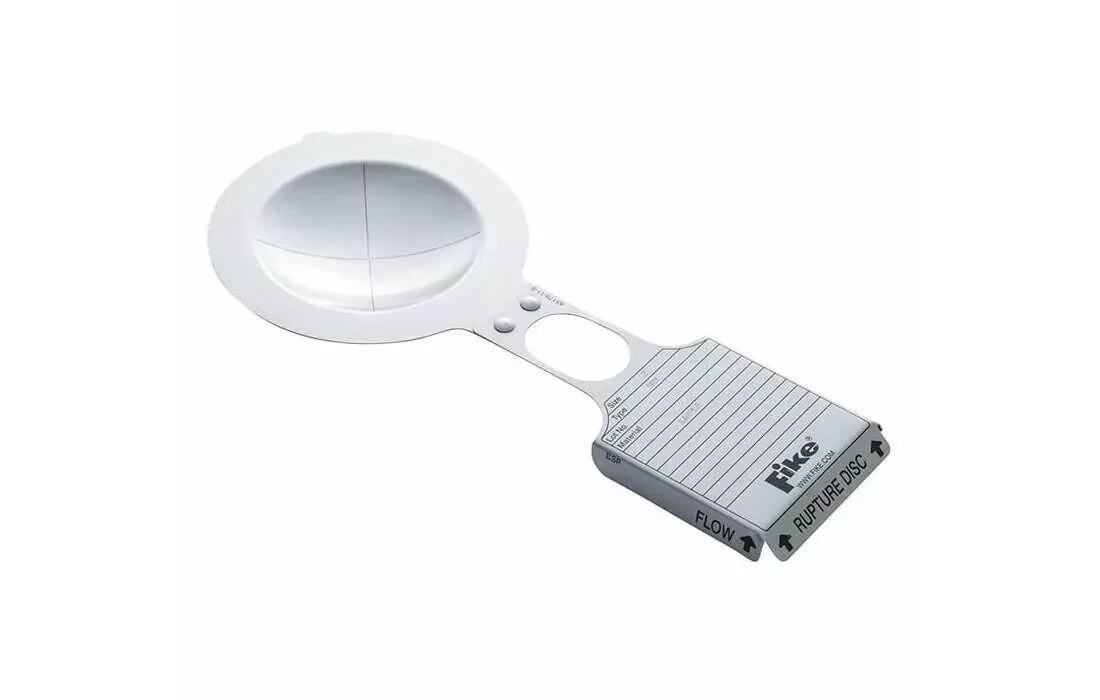

Fike SRX Rupture Disc

Scored, Reverse-Acting, Low Burst Pressure

The reverse-acting, SRX rupture disc has a cross scored design for use with vapor services only.

SRX

It offers a superior service life in heavy pulsating and cyclic duty, and performs reliably under less than ideal installation conditions.

  • The score configuration controls the disc opening and enables the disc to rupture without fragmentation.
  • Effective when used to isolate Safety Relief Valves
  • Will sustain process operating pressures as high as 90% of the stamped disc rating
  • Withstands full vacuum, or back pressure service in magnitudes equivalent to the stamped burst pressure.
  • Special seating configuration allows this rupture disc to perform reliably, even under less than ideal installation conditions.
  • All manufacturing ranges are below the specified burst pressure
  • Materials of construction include: 316/316L SST, Inconel®, Monel®, Nickel, and Hastelloy®. Protective coatings such as fluoropolymer and polyurethane are available to enhance corrosion resistance.
  • Effective in VALVEGUARD protection of expensive Pressure Relief Valves and Safety Relief Valves


How Rupture Discs Work

A rupture disc is a non-closing pressure relief device used to protect industrial applications from overpressure- or vacuum-related events. Learn about how rupture discs work and what sets Fike apart in its rupture disc manufacturing process.
